PLC Simulator


This app is a simulation of a Programmable Logic Controller (PLC). It allows the user to write programs in ladder logic and run them in the simulated PLC. This tool is intended to help beginners learn the basics of PLC programming using ladder logic.

PLC Simulator in Excel

The animated picture below shows "Seal-in" logic implemented in this PLC (see the  Examples page).

Seal in circuit


.xlsm file (76 KB)

I would like to thank Joshua Dring for pointing out a bug in the original version of this tool.

Excel files with sample ladder logic can be downloaded from the Examples section in this page.

A description of the tool follows, but it may be easier to learn about the tool through the video below.

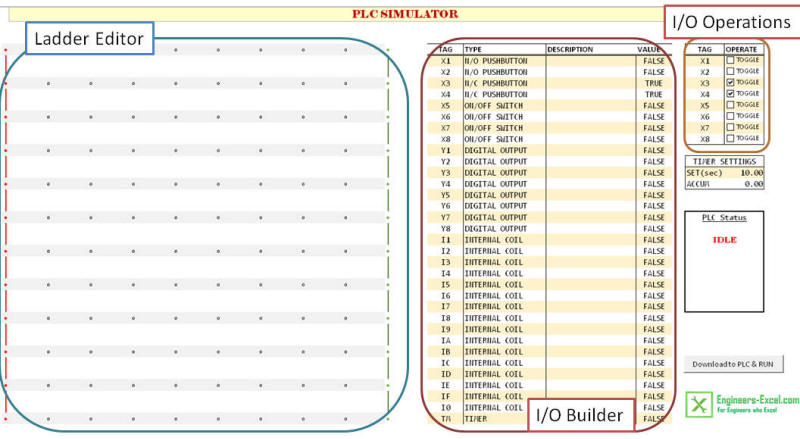

The different parts of the PLC Simulator are shown below.

PLC Simulator

The various parts of the simulator are:

1. The Ladder Editor: This is where the ladder logic is built. Use the drop down boxes in the grey areas for building the ladder and the drop down boxes on the top row to enter tag names. See animated picture below.


2. The Input/Output (I/O) Builder: The PLC supports 8 digital inputs of which the first four are push buttons and the rest are swiches. In addition, there are 8 digital outputs, a timer and 16 internal coils.

3. I/O Operations area: Use the check boxes in this area to switch inputs. Note that the pushbuttons (X1 to X4) only work when the PLC is running.

4. PLC Download and Run button: Once the logic is completed, use this button to download it to the PLC and run it.

Ladder logic rules and Limitations of the Simulator

The following rules apply to the ladder builder:

1. The Outputs can only be specified in the last column.

2. Each rung can only have one output connection. The following logic will not work. Y1 and Y2 must be on separate rungs.

Multiple output

3. The red power rail on the left cannot be used as a start of a branch. In other words, the following logic is not allowed. This will cause a run time error.

Incorrect Logic

To work around this, change the logic as follows:

Correct logic

Now the power rail is not a part of the branch.

4. A limitation of this simulator is that it does not support branches more than one rung deep. Therefore, nested branches are not allowed. The following code will not run on the PLC.



Use the example files to go through pre built logic and learn the operation of the simulator.

Example 1 - Logic Gates

This logic in this file implements an AND gate and an OR gate.

Download here.

Logic Gates

Example 2 - Seal-in Circuit

This logic in this file implements the common latch or "seal-in" circuit shown in the figure below. This logic is used to run drives using push buttons. The circult "latches in" when the start push button is pressed and releases when the stop push button is pressed.

Seal in circuit

PLC logic

Download here.

Example 3 - Conveyor with warning siren

This logic in this file implements the logic used for starting a conveyor belt - like the ones in airports for luggage handling. Before the conveyor drive is started, a warning siren sounds for 5 seconds. The conveyor or siren stop whenever the stop button is pressed.

Download here.
